Strymon TimeLine Multi Delay

Processing Power & Audio Architecture

• The Brains: Ultra-high performance SHARC DSP powered by a 366MHz SIMD processor core, capable of 2.4 Gigaflops peak performance.

• DSP Precision: 32-bit floating-point processing architecture.

• Converters: High-performance, ultra-low noise 24-bit/96kHz A/D and D/A converters for pristine studio audio fidelity.

• Dynamic Range: 115dB typical signal-to-noise ratio.

• Analog Dry Path: Pure analog dry signal path. Your dry guitar signal is never converted to digital, ensuring zero-latency dry tone integrity.

Sound Creation & Delay Machines

• 12 Unique Delay Engines: Covers everything from vintage hardware replicas to modern sound design spaces: Digital, Dual, Pattern, Reverse, Ice (pitch-shifted), Duck, Swell, Trem, Filter, Lo-fi, dTape™ (virtual tape machine), and dBucket™ (analog bucket-brigade emulation).

• Tactile Tone Shaping: Dedicated front-panel knobs for Time, Repeats, Mix, Filter, Grit, Mod Speed, and Mod Depth.

• Deep Tweakability: Hidden secondary menu parameters (like Smear, High Pass, Tape Bias, and Bucket Loss) tailored specifically to each individual delay machine.

• On-Board Stereo Looper: Includes a fully integrated 30-second stereo Looper. The looper can be routed Pre- or Post-delay, allowing you to loop a completely dry signal to experiment with delays, or record a massive wet delay wash into the loop layer.

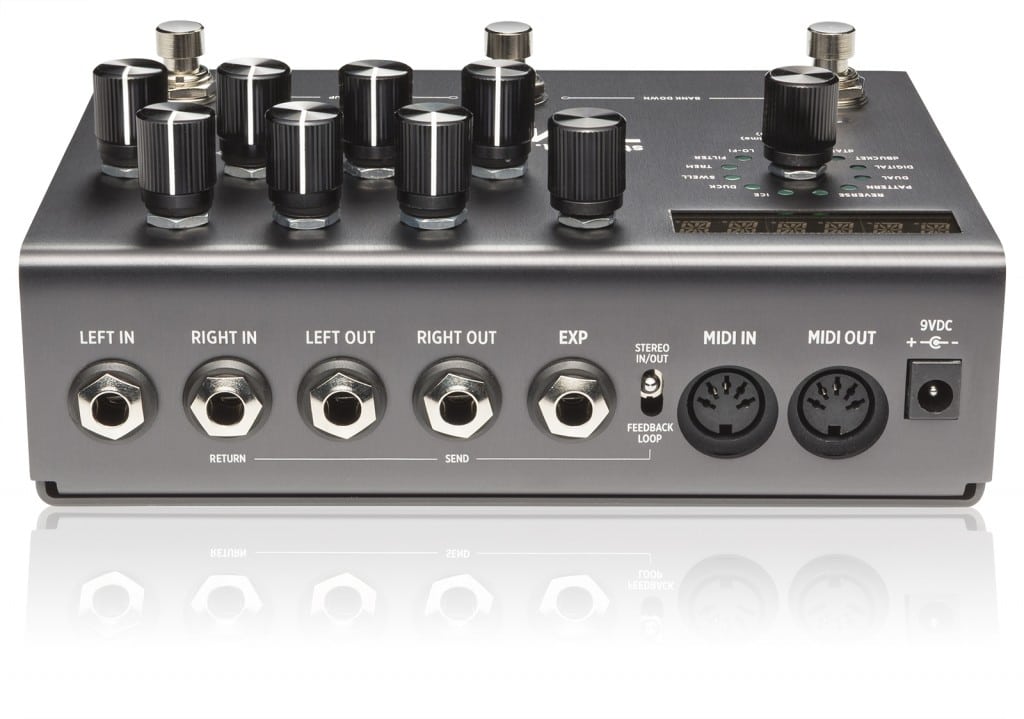

Hardware, I/O & Routing Options

• Display: Bright, alphanumeric LED display shows delay times in milliseconds or Beats Per Minute (BPM), plus bank details and parameter settings.

• Flexible Feedback Loop: A unique switchable rear-panel hardware feature allows you to change the I/O routing from standard Stereo Out to a Mono-with-Delay-Feedback-Loop Insert. This lets you insert another external pedal (like an overdrive or chorus) directly into the delay’s feedback path to affect only the repeats.

• Footswitches: Three heavy-duty metal footswitches for instantaneous Preset A/B selection, Bank scrolling, Tap Tempo, and dedicated Looper control.

• Bypass & Trails: Selectable electromechanical True Bypass or premium transparent Analog Buffered Bypass (saveable per preset to keep delay trails ringing naturally when bypassed).

Connectivity & Power

• Preset Capacity: 200 easily accessible, nameable, and rewritable on-board presets (organized into 100 banks of 2).

• MIDI Implementation: Full 5-pin DIN MIDI Input and Output/Thru for seamless integration into MIDI switchers, parameter automation (CC), and MIDI Clock synchronization.

• Expression Input: 1/4″ TRS input maps to any knob or combination of knobs simultaneously (saveable per preset), or can be configured as an external tap tempo switch.

• Power Requirements: Requires a standard 9V DC, center-negative, minimum 300mA power supply.

Physical Dimensions

• Chassis: Incredibly rugged, lightweight gunmetal gray anodized aluminum enclosure with durable black aluminum knobs.

• Size: 6.75” wide (17.15 cm) x 5.1” deep (12.95 cm).

• Origin: Proudly designed and built in the USA.
