solderless patch cable system
-
set for assembly of 5 patch cables
-

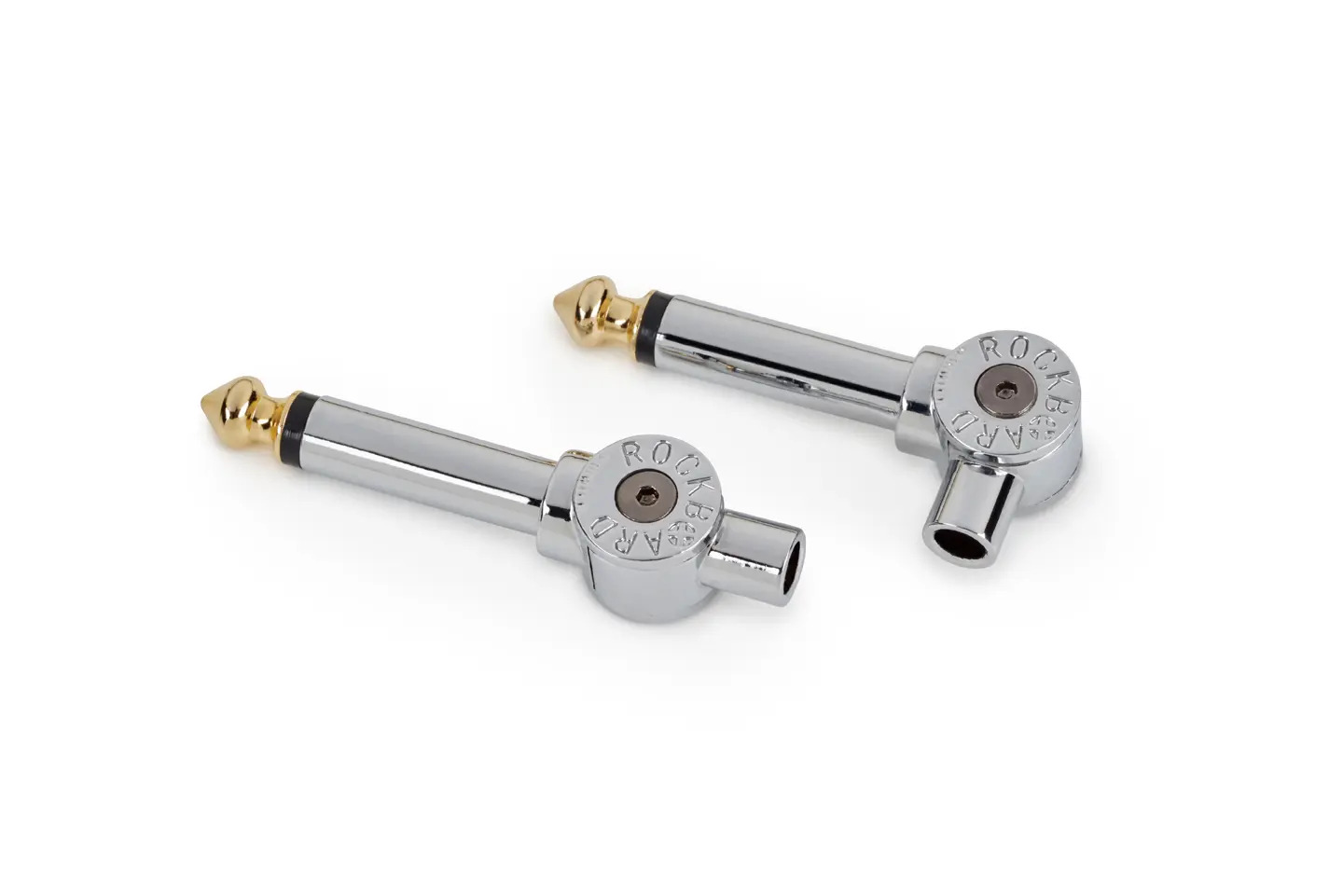

unique 2-directional 2-piece connector design (patent pending)
-
can be assembled as either straight or angled plugs
-
plug’n play design – no cable stripping required
-

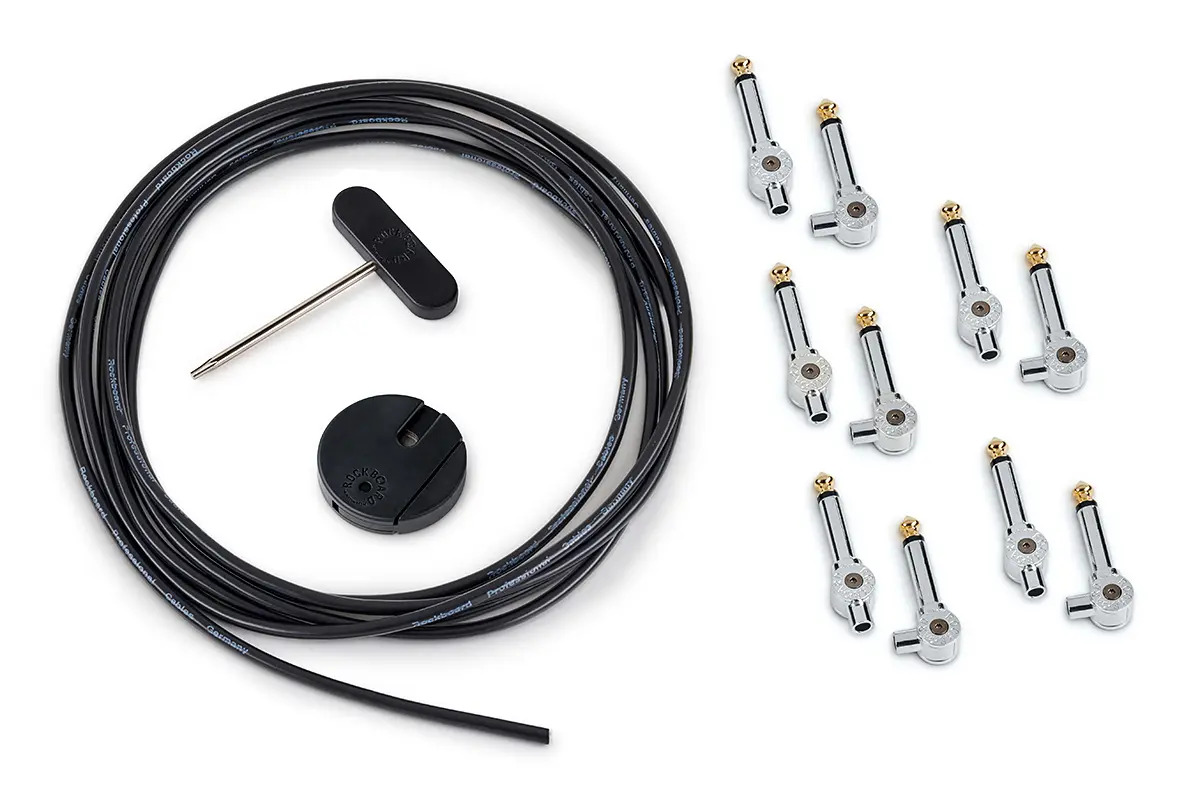

includes 10 plugs and 300 cm / 118 7/64″ cables
-
plug dimensions straight (L x W x H) 20 x 12 x 10 mm / 13/16″ x 1/2″ x 3/8″
-
plug dimensions angled (L x W x H) 15 x 13 x 10 mm / 9/16″ x 1/2″ x 3/8″
-
gold plated tips
-
chrome finish
-

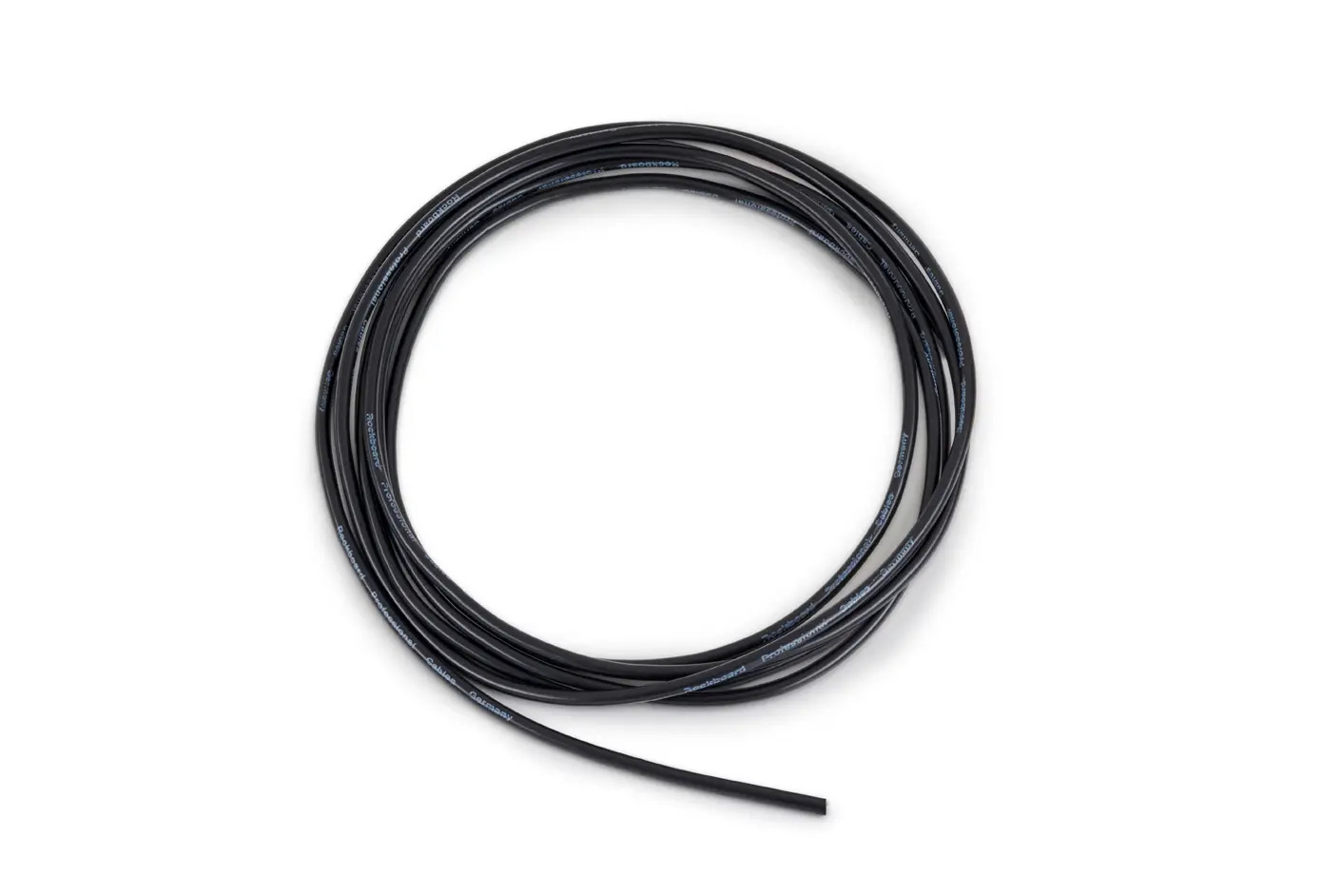

low capacitance cable for maximum signal transparency
-
flexible oxygen free copper conductor 7 / 0.16 mm
-
stiff PE insulation
-
braided tinned copper shielding 6 x 16 / 0.12 mm
-
black outer PVC jacket
-
capacitance cond./shield less than 8 pF/decimeter
-
conductor resistance of 4 mOhm/decimeter
-
operating temperature -15°C to +70°C / 5° F to 158° F
-
diameter 4 mm / 3/16″
-

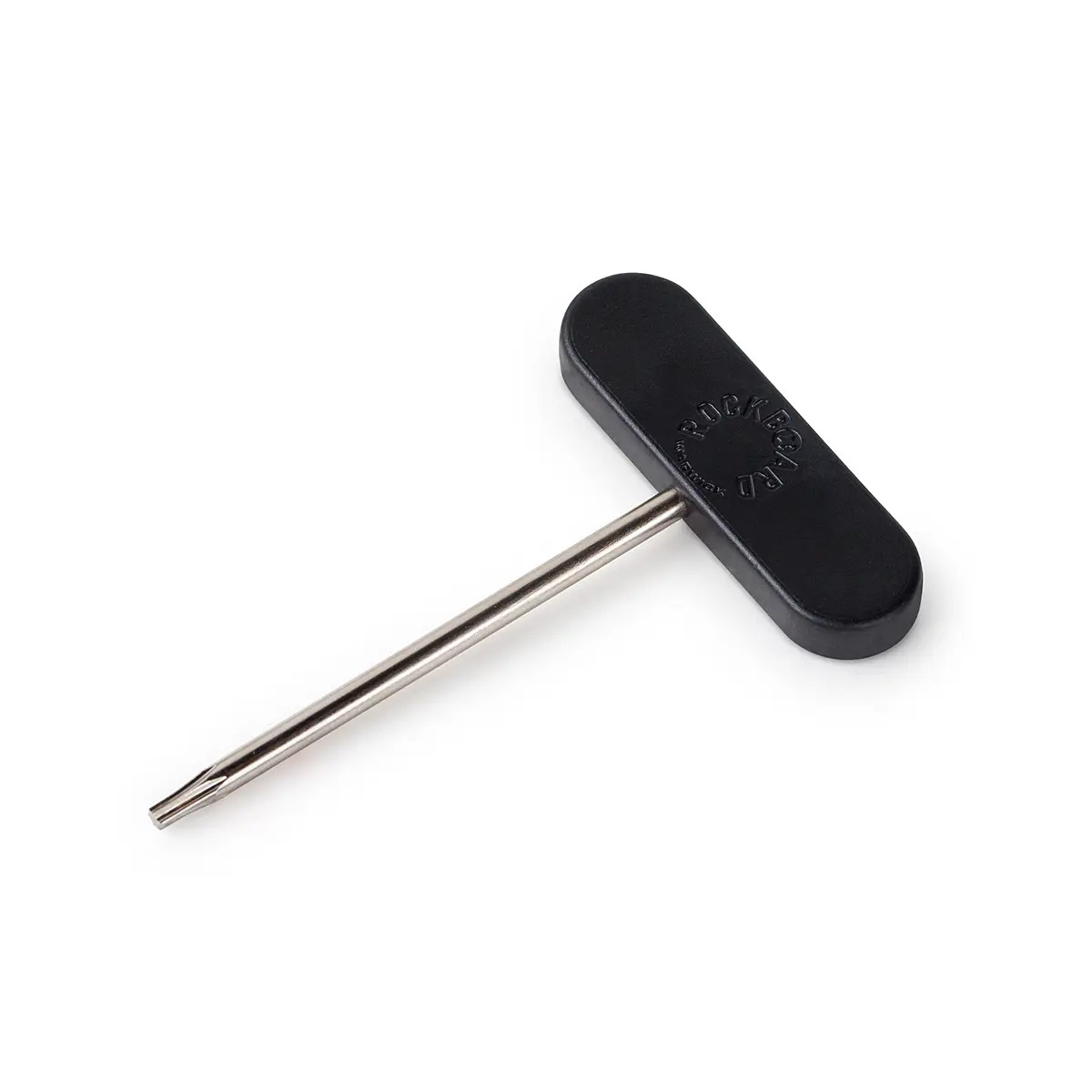

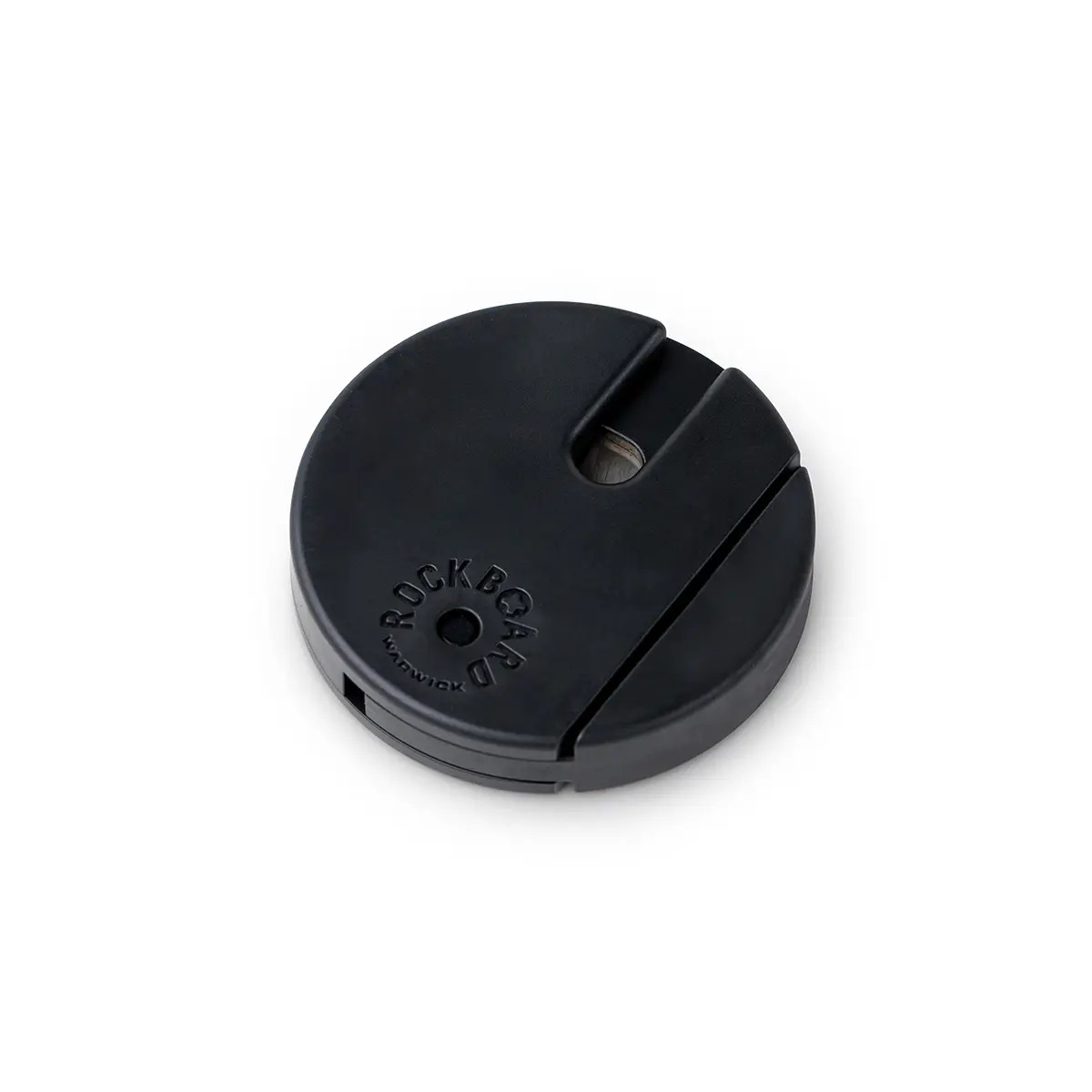

incl. TX8 wrench, cable cutter
